STRAIGHT LINE RIP SAW

  YRS-14



STRAIGHT LINE RIP SAW

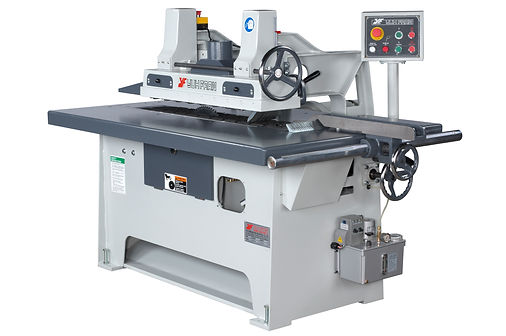

  YRS-14 STRAIGHT LINE RIP SAW

FEATURES

● The rip saw is equipped with a powerful motor, assuring extremely smooth cutting.
● This series of rip saw is ruggedly constructed for outstanding cutting and edging stability.
● Variable feed speed device allows for cutting all types of wood material.
● Track chain conveyor ensures high straight accuracy.
● Laser Marker unit enhances cutting efficiency. (Option)

SPECIFICATIONS



● Arbor motor: 10HP

● Saw blade diameter:ø12"-ø14"

● Saw arbor diameter:ø2"

● Working thickness:70mm

● Max. working width:500mm

● Spindle rotation :2850 rpm/ 50Hz, 3600 rpm/ 60Hz

● Feeding motor:3HP

● Feeding speed:10~25/ 50Hz

● Variable (m/min):12~29/ 60Hz

● Table size:1665x1020mm

● Net weight:290 kgs

● Gross weight:1250 kgs

● Packing dimensions(LxWxH):1850x1130x1700mm

*We reserve the right to modify design without prior notice.

Double Anti-Kickback Fingers

● Anti-kickback fingers provide maximum operator safety.

Control Panel



All of machine motion controls are centralized on a control panel for operation convenience. An oil empty warning lamp is provided on the control panel.

Rail & Chains

● Block surface is corrugated machined and hardened to resist wear.

● Ensure stable feeding and high cutting precision.

Rapid Movable Fence (Option)

● Sensor controls Auto Fence and processed wood piece moves fast in order to save time and easy operated.
